下洗上烘參數
規格型號Model ＆ norm | SXTH-120G | SXTH-160G | SXTH-220G |
洗滌容量Washing capacity | 12 | 16 | 22 |
烘干容量Drying capacity | 12 | 16 | 22 |
噪音dB(A) Noise | 70 | 70 | 70 |
工作電壓（V）Washing voltage | AC110/220/380/415/440/50-60Hz | ||
洗滌轉速Washing speed | 45 | 45 | 45 |
烘干轉速Drying speed | 36 | 36 | 36 |
均布轉速Distribution speed | 60 | 60 | 60 |
高脫轉速High E×tract speed | 600 | 600 | 600 |
洗滌電機功率Motor power | 1.1 | 1.5 | 2.2 |
烘干電機功率 Drying Motor power | 0.2 | 0.2 | 0.2 |
烘干風機功率Power of Air Blower | 0.55 | 0.55 | 0.55 |
洗滌加熱器功率（Kw）Power of Heater | 220V8/380V12 | ||
烘干加熱形式 Heating form | 電、蒸汽、液化氣、瓦斯、天然氣 | ||
烘干電加熱器功率（Kw）Drying Power of Heater | 220V8/380V12 | 220V10/380V14 | 220V10/380V18 |
每車耗水量（L）Water Consumption | 200 | 240 | 300 |
每車洗滌耗汽量（Kg）Stesm Consumption | ≦18 | ≦18 | ≦25 |
每車烘干耗汽量（Kg）Drying Stesm Consumption | 20-30 | 25-35 | 36-45 |
裝機容量Installed Capacity | 220V18.7/380V29 | 220V21/380V29 | 220V22/380V34 |
蒸汽壓力(MPa)Steam pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
冷水進口尺寸Cold Water Inlet | φ20 | φ20 | φ20 |
蒸汽進口尺寸Steam Inlet | φ15 | φ15 | φ15 |
排水口尺寸Water Drain | φ50 | φ50 | φ50 |
排風口尺寸 Exhaust Pipe size | φ145 | φ145 | φ145 |
整機重量Net weight | 400 | 437 | 470 |

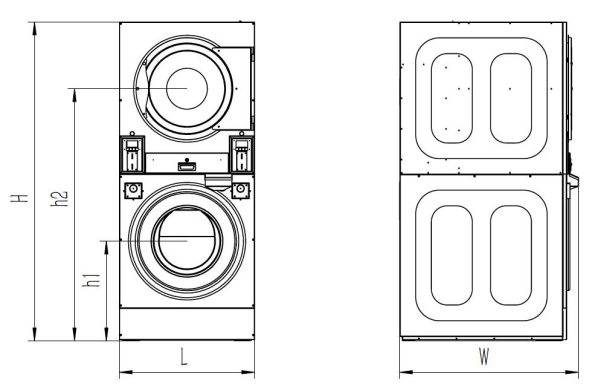

機器寬度 width（L） | 862 | 862 | 862 |
機器深度depth（W） | 985 | 1130 | 1265 |
機器高度height（H） | 2028 | 2028 | 2028 |
1機門中心高度 (mm)height center Door （h1） | 634 | 634 | 634 |
2機門中心高度 (mm)height center Door （h2） | 1600 | 1600 | 1600 |
